Revolutionize Your Turf Care with the Verti-Drain® 7416 from Redexim

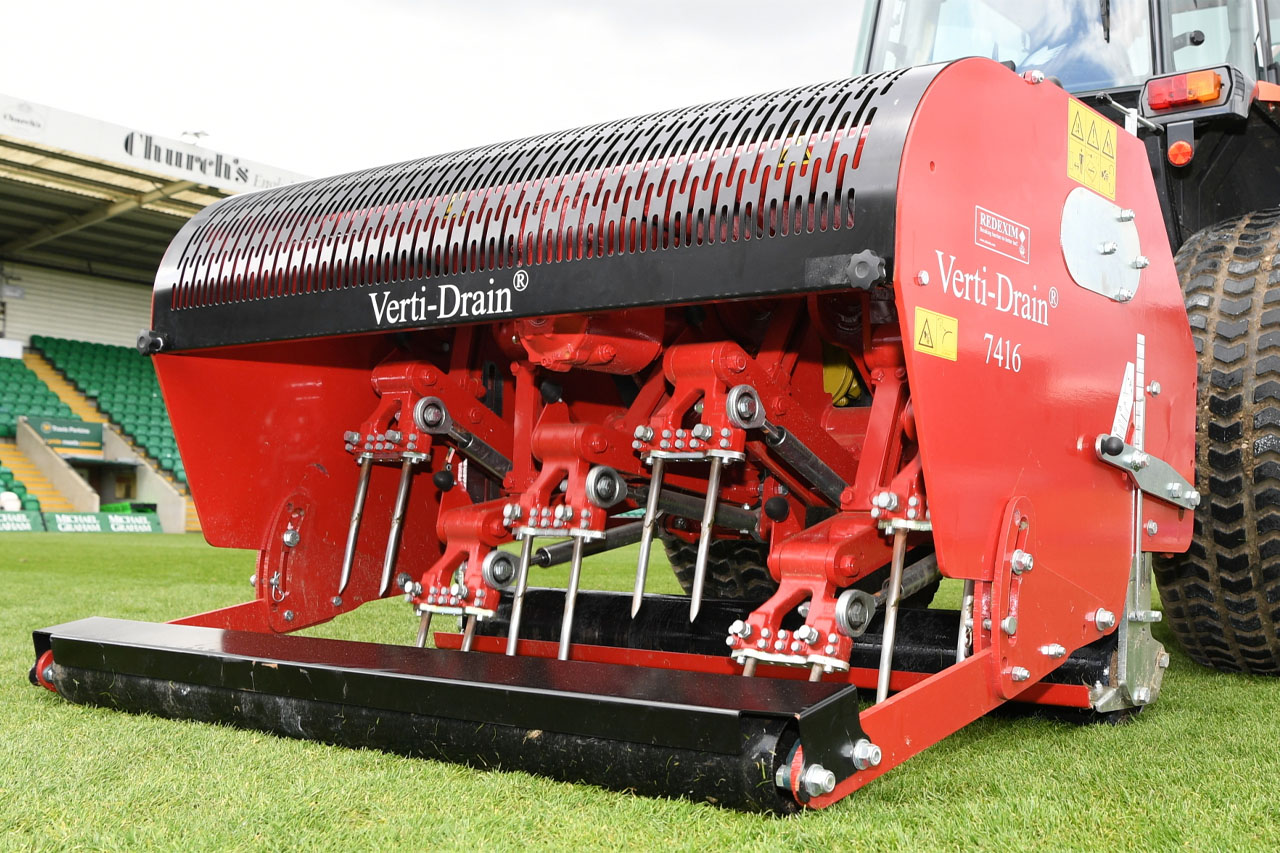

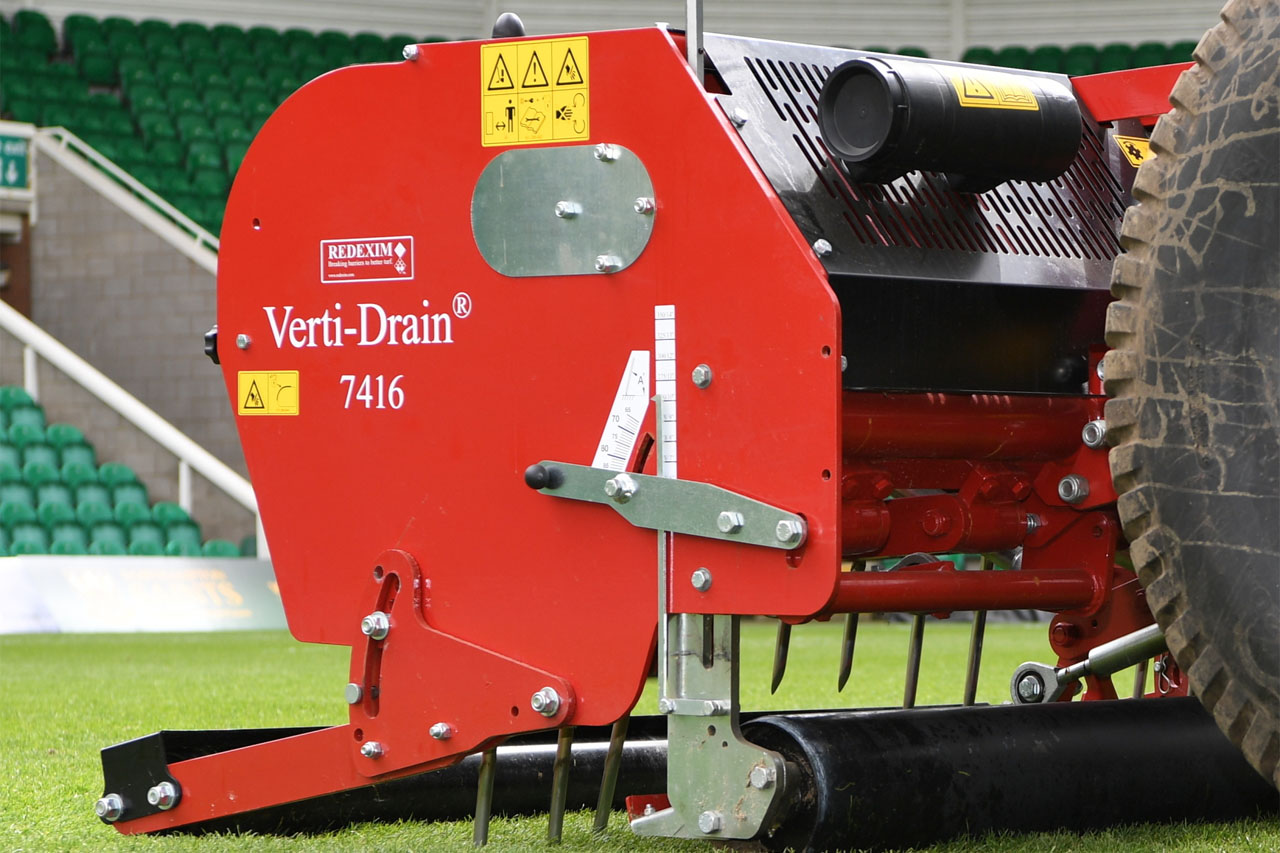

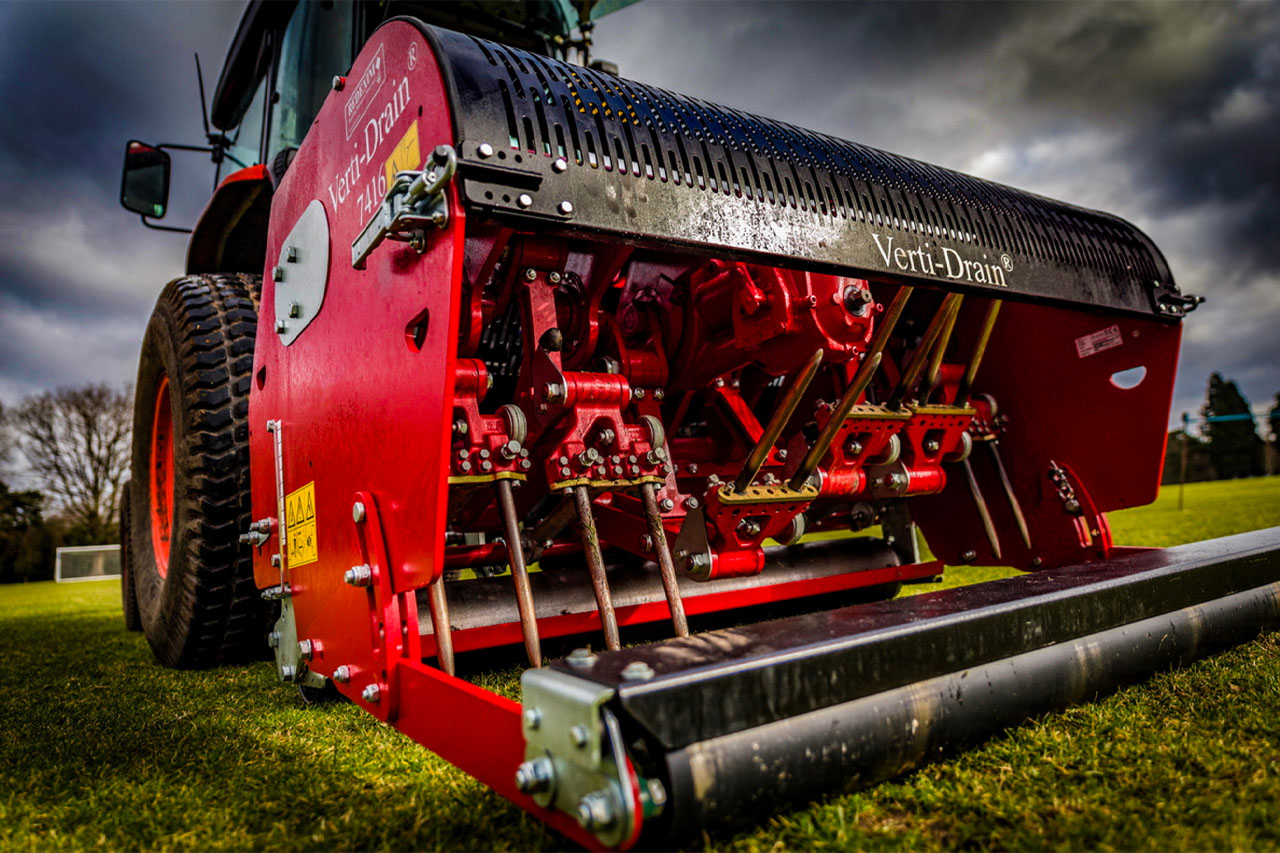

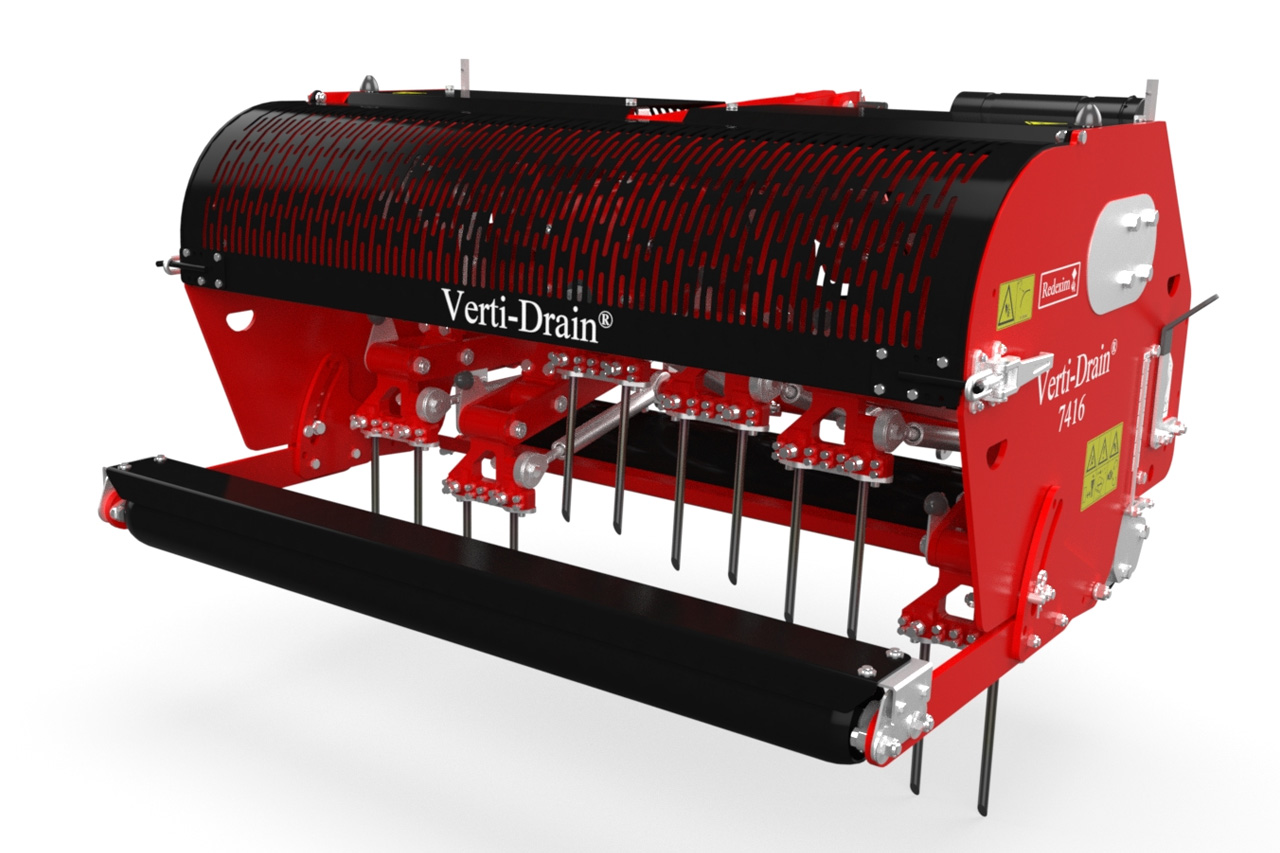

The Verti-Drain® 7416 is one of the most versatile aerators in the Redexim lineup, engineered to provide exceptional performance across a variety of turf maintenance tasks. Designed to reach a depth of up to 14 inches (350 mm), this powerful machine is ideal for sports fields, golf courses, and other fine turf areas.
Achieve deep root growth, enhanced water filtration and nutrient absorption. The Verti-Drain® 7416 reaches aeration depths of up to 14 inches; deep aeration is essential for maintaining healthy, resilient turf that can withstand heavy use and other stresses.
From compacted soil on a sports field to maintaining pristine golf greens, the Verti-Drain® 7416 delivers consistent, high-quality results.
The Verti-Drain® 7416’s tough chassis is built to endure rigorous use and ensures long-term reliability and consistent performance, making this machine a valuable investment for any turf maintenance professional.
Cover large areas quickly without sacrificing on quality of aeration. This machine’s working speed maximizes productivity while maintaining the precision you need, ensuring your turf receives the best care possible.
The Verti-Drain® 7416’s three-point hitch and integrated parking stands are designed for ease of use and convenience for both operators of all skill levels, reducing downtime and increasing operational efficiency.
Leave your turf looking smooth and professional with optional components like the rear roller kit and core collector. These enhance the surface finish after aeration and are especially beneficial for high-visibility areas.
| SKU | 7416 |
| Working width (m) | 1.6 |
| Working width (inch) | 63 |
| Max. Working depth (mm) | 350 |
| Max. Working depth (inch) | 14 |
| Working speed at hole spacing 65 mm (km h) | 0.85 |
| Working speed at hole spacing 2 1 2 inch (mph) | 0.55 |
| Weight (kg) | 870 |
| Weight (lbs) | 1914 |
| Hole distance with 12 mm tines (mm) | 65 |
| Hole distance with 1 2 x 6 inch tines (inch) | 2.5 |
| Hole distance with 18 mm tines (mm) | 130 |
| Hole distance with 3 4 x 9 inch tines (inch) | 5 |
| Hole spacing distance driving direction (mm) | 25 – 195 |
| Hole spacing distance driving direction (inch) | 1 – 7-1/2 |
| Max. Diameter solid tine (mm) | 24 x 350 |
| Max. Diameter solid tine (inch) | 1 x 14 |
| Max. Diameter hollow tine (mm) | 32 x 300 |
| Max. Diameter hollow tine (inch) | 1-1/4 x 12 |
| Min. Tractor HP required | 35 |
| Min. Lifting capacity 610 mm behind the lifting eyes (kg) | 1050 |
| Min. Lifting capacity 24 inch behind the lifting eyes (lbs) | 2310 |
| Max. capacity with spacing 65 mm (m² hr) | 1360 |
| Max. capacity with spacing 2 1 2 inch (ft² hr) | 12300 |
| Three-point hitch | 3-point CAT 1 |
| Rpm Max. | 500 |
| Gear case oil | 80W90 – 5 |
| Lubricant | EP 2 |
| Slip clutch setting | 800 Nm |
| Description | Quantity | Article number |
|---|---|---|
| Toolbox with combi tool and manual | 1 | |
| PTO Shaft | 1 | |
| Solid Tine 18×300 | 12 | 2382638 |
| Description | Quantity | Article number |
|---|---|---|
| Turf Hold Down Kit for 12mm tines – 7416 | 1 | 211.741.002 |
| Turf Hold Down Kit for 18mm tines – 7416 | 1 | 211.741.004 |
| Windrow Kit for 71/73/74/75 Series | 1 | 211.731.010 |
| Core Collector for 7316/7416/7516 | 1 | 9200080 |
| Hydraulic front roller adjustment VD 7416 | 1 | 211.740.010 |
| Solid Tine 8×175 | 24 | 9990056 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 124 | 314.208.043 |
| Solid Tine 8×150 | 48 | 311.108.150 |
| Requires | ||
| MTH Block for (8) tines 8mm (5/16″) | 6 | 9990211 |
| Solid Tine 8×150 | 24 | 311.108.150 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Solid Tine 5×125 | 24 | 311.105.125 |
| Requires | ||
| Adapter 5mm tines (3/16″) | 24 | 314.205.043 |
| Solid Tine 8×175 | 48 | 9990056 |
| Requires | ||
| MTH Block for (8) tines 8mm (5/16″) | 6 | 9990211 |
| Solid Tine 8×250 | 24 | 9990059 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Solid Tine 12×150 | 24 | 311.112.150 |
| Solid Tine 12×200 | 24 | 311.112.200 |
| Solid Tine 12×250 | 24 | 2381837 |
| Solid Tine 12×300 | 24 | 2381838 |
| Solid Tine 18×200 | 12 | 311.118.200 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Solid Tine 18×250 | 12 | 2381841 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Solid Tine 18×350 | 12 | 311.118.350 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Solid Tine 24×225 | 12 | 311.124.225 |
| Solid Tine 24×350 | 12 | 311.124.350 |
| Hollow Tine 10×80 (8 shank) | 24 | 311.210.080 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Hollow Tine 10×80 (8 shank) | 48 | 311.210.080 |
| Requires | ||
| MTH Block for (8) tines 8mm (5/16″) | 6 | 9990211 |
| Hollow Tine 10×125 (8 shank) | 24 | 311.210.127 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Hollow Tine 10×125 (8 shank) | 48 | 311.210.127 |
| Requires | ||
| MTH Block for (8) tines 8mm (5/16″) | 6 | 9990211 |
| Hollow Tine 16×150 (12 shank) | 24 | 311.216.150 |
| Hollow Tine 16×175 (12 shank) | 24 | 9990022 |
| Hollow Tine 19×150 (12 shank) | 24 | 311.219.150 |
| Hollow Tine 19×200(18 shank) | 12 | 311.219.200 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Hollow Tine 19×200 (12 shank) | 24 | 311.219.201 |
| Hollow Tine 19×225 (18 shank) | 12 | 311.219.225 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Hollow Tine 19×225 (12 shank) | 24 | 311.219.226 |
| Hollow Tine 19×250 (12 shank) | 24 | 9990040 |
| Hollow Tine 19×250 (18 shank) | 12 | 9990023 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Hollow Tine 25×200 (18 shank) | 12 | 311.225.200 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Hollow Tine 25×225 (18 shank) | 12 | 311.225.225 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Hollow Tine 25×250 (18 shank) | 12 | 9990024 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Hollow Tine 29×250 (18 shank) | 12 | 9990066 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Hollow Tine 32x21x300mm (1 1/4×13/16×12)”) MD: 24mm | 12 | 9990034 |
| Hollow Tine 32×300 (18 shank) | 12 | 9990041 |
| Requires | ||
| Adapter 18mm tines (3/4″) | 12 | 2451800 |
| Cross Tine 12×90 (8 shank) | 24 | 9990020 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Cross Tine 12×90 (8 shank) | 48 | 9990020 |
| Requires | ||
| MTH Block for (8) tines 8mm (5/16″) | 6 | 9990211 |
| Cross Tine 19×120 (12 shank) | 24 | 9990021 |
| Cross Tine 12×90 (12 shank) | 24 | 311.812.090 |
| Chisel Tine 4.8x19x120 (12 shank) | 24 | 311.619.120 |
| Chisel Tine 4.8x19x175 (12 shank) | 24 | 311.619.175 |
* This product may not be available for your region.
