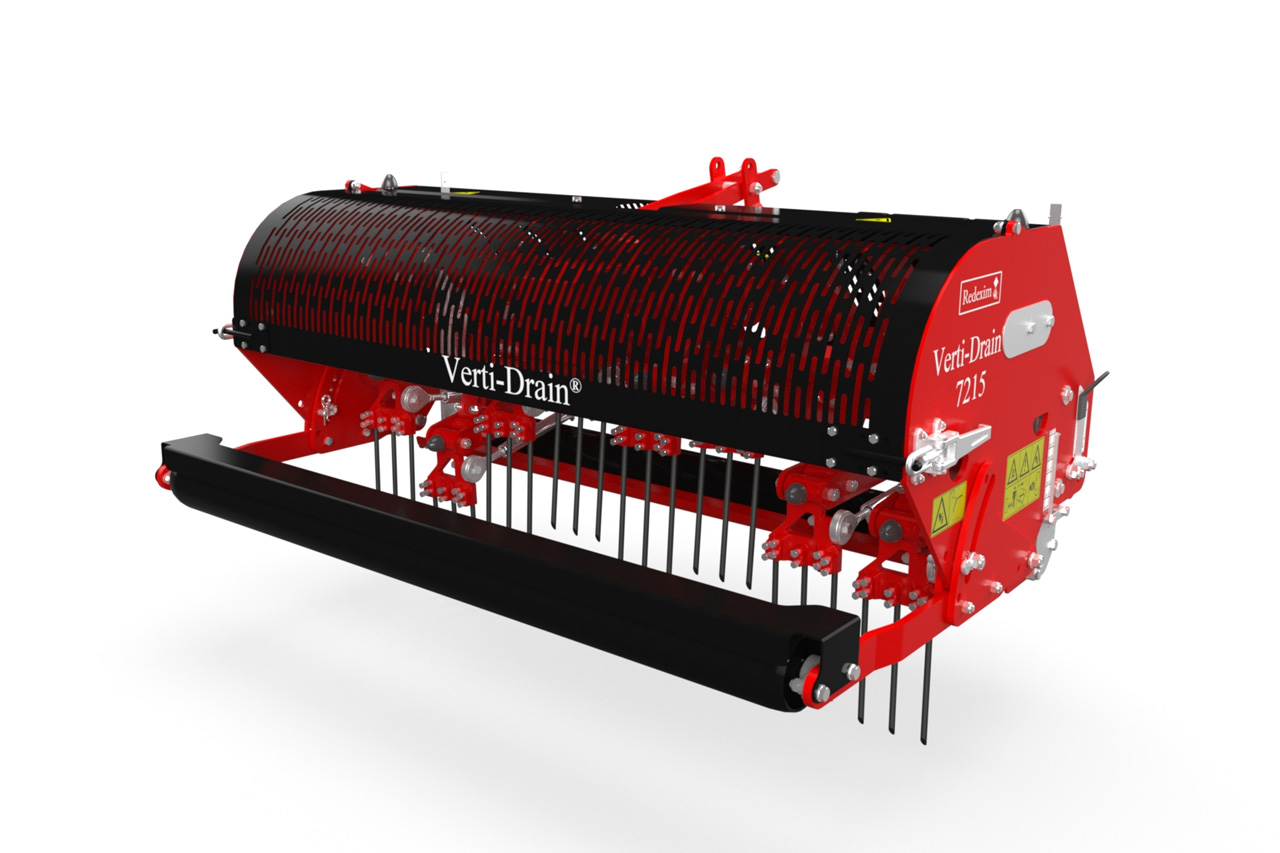

Superior Turf Aeration with the Verti-Drain® 7215 from Redexim
The Verti-Drain® 7215 by Redexim combines power, efficiency and precision in one robust machine, delivering exceptional aeration for a wide range of turf surfaces. It works to a maximum depth of 10 inches (250 mm) and is capable of handling a variety of tine options, ensuring you maintain a healthy, resilient, visually appealing turf.
The Verti-Drain® 7215 reaches a maximum working depth of 10 inches, which promotes deep root growth, enhances water infiltration, and improves nutrient absorption in your turf. This deep aeration process is crucial for maintaining a vibrant and strong turf that is capable of withstanding heavy use and environmental stresses.
The Verti-Drain® 7215 operates at high speeds that allow you to cover large areas efficiently. This high-speed capability maximizes your productivity and allows you to complete large aeration tasks in less time while still maintaining the consistent, high-quality results you want.
Depending on your turf, you may need to use both solid and hollow tines when aerating your soil. The Verti-Drain® 7215 is compatible with a wide range of both, allowing you flexibility to work with a wide range of turf types, or to address specific turf conditions.
The Verti-Drain® 7215 is built with heavy-duty materials meant to withstand rigorous use in various conditions. Its robust design ensures long-term reliability and consistent performance, making it a valuable investment for any turf maintenance professional.

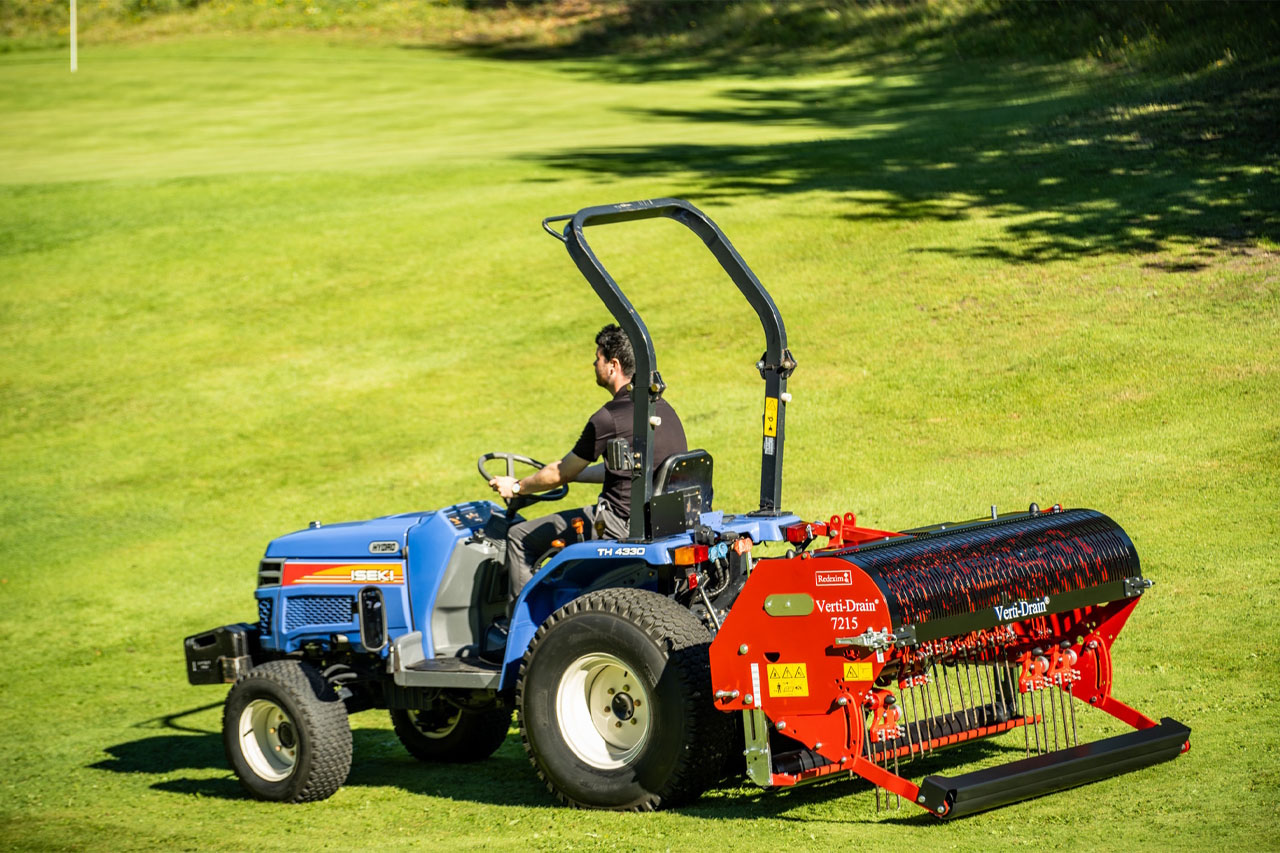

The Verti-Drain® 7215 is built for operators of all skill levels, featuring a three-point hitch and integrated parking stands. Its intuitive controls and straightforward setup are designed to be convenient and easy to use.
Add optional components like the rear roller kit to smooth your turf’s surface post-aeration to leave a neat, polished finish. If you are working in a high-visibility area like a golf course, this ensures a professional appearance.
| SKU | 7215 |
| Working width (m) | 1.56 |
| Working width (inch) | 61 |
| Max. Working depth (mm) | 250 |
| Max. Working depth (inch) | 10 |
| Working speed at hole spacing 65 mm (km h) | 1 |
| Working speed at hole spacing 2 1 2 inch (mph) | 0.6 |
| Weight (kg) | 550 |
| Weight (lbs) | 1210 |
| Hole distance with 12 mm tines (mm) | 65 |
| Hole distance with 1 2 x 6 inch tines (inch) | 2.5 |
| Hole distance with 18 mm tines (mm) | 100 |
| Hole distance with 3 4 x 9 inch tines (inch) | 4 |
| Hole spacing distance driving direction (mm) | 25 – 165 |
| Hole spacing distance driving direction (inch) | 1 – 6-1/2 |
| Max. Diameter solid tine (mm) | 18 x 250 |
| Max. Diameter solid tine (inch) | 3/4 x 10 |
| Max. Diameter hollow tine (mm) | 25 x 250 |
| Max. Diameter hollow tine (inch) | 1 x 10 |
| Min. Tractor HP required | 25 |
| Min. Lifting capacity 610 mm behind the lifting eyes (kg) | 700 |
| Min. Lifting capacity 24 inch behind the lifting eyes (lbs) | 1540 |
| Max. capacity with spacing 65 mm (m² hr) | 1560 |
| Max. capacity with spacing 2 1 2 inch (ft² hr) | 11000 |
| Three-point hitch | 3-point CAT 1 |
| Rpm Max. | 500 |
| Gear case oil | 80W90 |
| Lubricant | EP 2 |
| Slip clutch setting | 400 Nm |
| Description | Quantity | Article number |
|---|---|---|
| Toolbox with combi tool and manual | 1 | |
| PTO Shaft | 1 | |
| Solid Tine 12×250 | 24 | 2381837 |
| Description | Quantity | Article number |
|---|---|---|
| Windrow Kit for 72 Series | 1 | 211.721.016 |
| Core Collector for 7215 | 1 | 211.721.006 |
| Turf Hold Down Kit for 12mm tines – 7215 | 1 | 211.721.002 |
| Turf Hold Down Kit for 18mm tines – 7215 | 1 | 211.721.004 |
| Solid Tine 5×125 | 24 | 311.105.125 |
| Requires | ||
| Adapter 5mm tines (3/16″) | 24 | 314.205.043 |
| Solid Tine 5×125 | 168 | 311.105.125 |
| Requires | ||
| MTH Block for (21) tines 5mm (3/16″) | 8 | 314.425.170 |
| Solid Tine 8×150 | 24 | 311.108.150 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Solid Tine 8×150 | 48 | 311.108.150 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 8 | 9990206 |
| Solid Tine 8×175 | 24 | 9990056 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Solid Tine 8×175 | 48 | 9990056 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 8 | 9990206 |
| Solid Tine 8×250 | 24 | 9990059 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Solid Tine 12×150 | 24 | 311.112.150 |
| Solid Tine 12×200 | 24 | 311.112.200 |
| Solid Tine 18×200 | 16 | 311.118.200 |
| Solid Tine 18×250 | 16 | 2381841 |
| Hollow Tine 10×80 (8 shank) | 24 | 311.210.080 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Hollow Tine 10×80 (8 shank) | 48 | 311.210.080 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 8 | 9990206 |
| Hollow Tine 10×125 (8 shank) | 24 | 311.210.127 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Hollow Tine 10×125 (8 shank) | 48 | 311.210.127 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 8 | 9990206 |
| Hollow Tine 16×150 (12 shank) | 24 | 311.216.150 |
| Hollow Tine 16×175 (12 shank) | 24 | 9990022 |
| Hollow Tine 19×150 (12 shank) | 24 | 311.219.150 |
| Hollow Tine 19×200(18 shank) | 16 | 311.219.200 |
| Hollow Tine 19×200 (12 shank) | 24 | 311.219.201 |
| Hollow Tine 19×225 (18 shank) | 16 | 311.219.225 |
| Hollow Tine 19×225 (12 shank) | 24 | 311.219.226 |
| Hollow Tine 19×250 (18 shank) | 16 | 9990023 |
| Hollow Tine 19×250 (12 shank) | 24 | 9990040 |
| Hollow Tine 25×200 (18 shank) | 16 | 311.225.200 |
| Hollow Tine 25×225 (18 shank) | 16 | 311.225.225 |
| Hollow Tine 25×250 (18 shank) | 16 | 9990024 |
| Cross Tine 12×90 (8 shank) | 24 | 9990020 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 24 | 314.208.043 |
| Cross Tine 12×90 (8 shank) | 48 | 9990020 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 8 | 9990206 |
| Cross Tine 12×90 (12 shank) | 24 | 311.812.090 |
| Cross Tine 19×120 (12 shank) | 24 | 9990021 |
| Chisel Tine 4.8x19x175 (12 shank) | 24 | 311.619.175 |
| Chisel Tine 4.8x19x120 (12 shank) | 24 | 311.619.120 |
* This product may not be available for your region.
