Revolutionize Your Turf Maintenance with the Verti-Drain® 2519 from Redexim
The Verti-Drain® 2519 from Redexim delivers exceptional aeration for various turf types, offering unparalleled productivity and versatility. This high-speed model is designed for robust performance, achieving a maximum working depth of 10 inches (250 mm), and is compatible with a wide range of tines, making it the ideal choice for efficient and effective turf care.
The Verti-Drain® 2519 penetrates up to 10 inches (250 mm), promoting healthy root growth, improving water infiltration, and enhancing nutrient absorption. This deep aeration is essential for maintaining resilient and vibrant turf.
The Verti-Drain® 2519 is capable of operating at a working speed of 1.79 km/h (1.1 mph) at 65 mm spacing, which ensures efficient aeration over large areas. This high-speed capability maximizes productivity, allowing you to complete more work in less time.
The Verti-Drain® 2519 works on a wide range of surface types and adapts to different turf conditions with ease. From sports fields and golf courses to municipal grounds, this machine delivers consistent, high-quality results.
With a weight of 900 kg (1984 lbs) and a heavy-duty build, the Verti-Drain® 2519 is designed to withstand rigorous use. This durability ensures long-term reliability and consistent performance, even in demanding conditions.

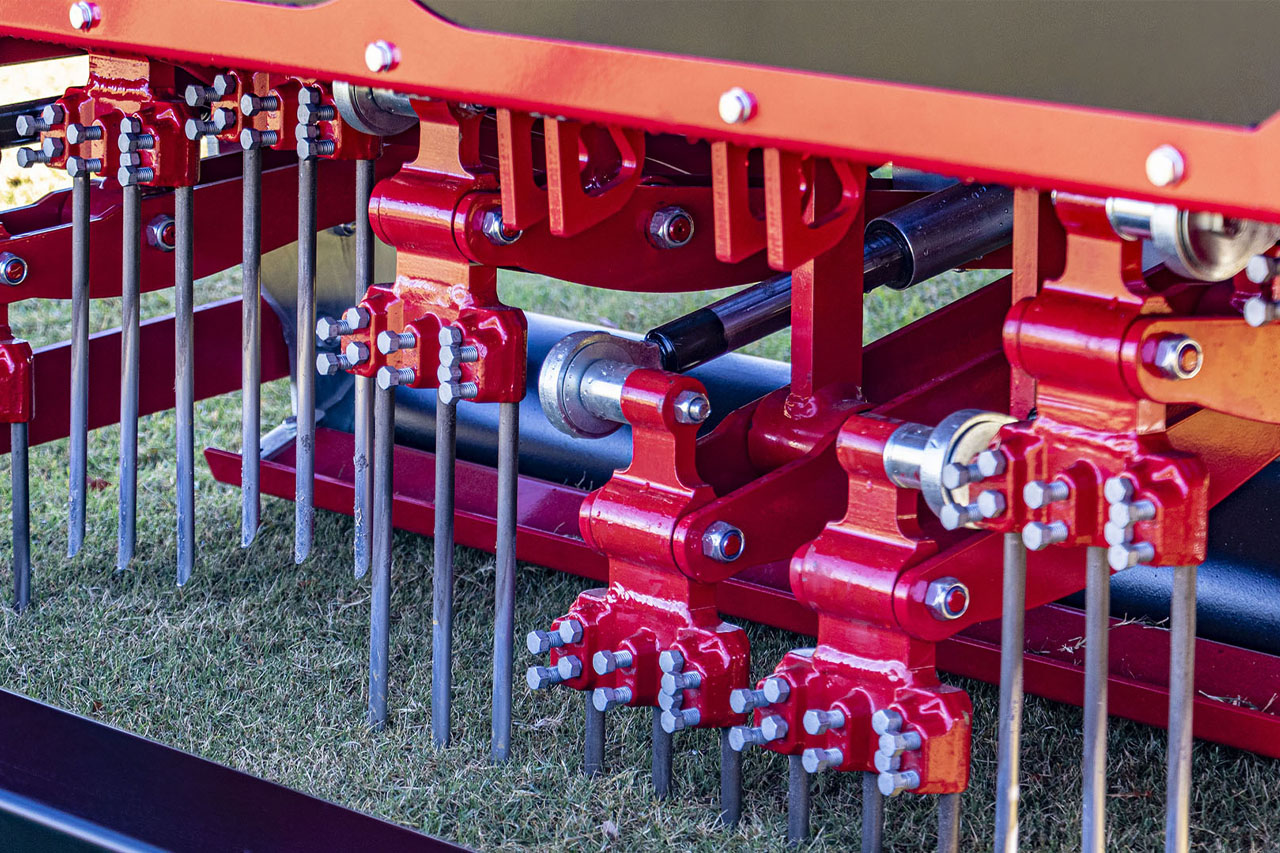

The Verti-Drain® 2519 supports both solid and hollow tines, with maximum diameters of 18 mm (3/4 inch) and 25 mm (1 inch) respectively. This flexibility allows you to tailor the aeration process to your specific needs, as well as achieve optimal results for different turf types.
Featuring a three-point hitch and a slip clutch setting of 550 Nm (4868 lbf-in), the Verti-Drain® 2519 is designed to be safe and easy to use. Its straightforward setup and operation make it accessible for operators of all skill levels.
| SKU | 111.251.904 |
|---|---|
| Working width (m) | 1.95 |
| Working width (inch) | 76.7 |
| Max. Working depth (mm) | 250 |
| Max. Working depth (inch) | 10 |
| Working speed at hole spacing 65 mm (km h) | 1.79 |
| Working speed at hole spacing 2 1 2 inch (mph) | 1.1 |
| Weight (kg) | 900 |
| Weight (lbs) | 1984 |
| Max. Diameter solid tine (mm) | 18 x 250 |
| Max. Diameter solid tine (inch) | 3/4 x 10 |
| Max. Diameter hollow tine (mm) | 25 x 250 |
| Max. Diameter hollow tine (inch) | 1 x 10 |
| Min. Tractor HP required | 60 |
| Max. capacity with spacing 65 mm (m² hr) | 3490 |
| Max. capacity with spacing 2 1 2 inch (ft² hr) | 37566 |
| Three-point hitch | 3-Point CAT 1/2 |
| Rpm Max. | 540 |
| Gearbox oil | 80W90 – 1.2 (0.31 gallon) |
| Lubricant | EP 2 |
| Dimensions (width mm) | 2314 |
| Dimensions (height mm) | 963 |
| Dimensions (length mm) | 1250 |
| Dimensions (width inch) | 91.1 |
| Dimensions (height inch) | 37.9 |
| Dimensions (length inch) | 49.2 |
| Slip clutch setting | 550 Nm (4868 lbf-in) |
| Description | Quantity | Article number |
|---|---|---|
| Toolbox with combi tool and manual | 1 | |
| PTO Shaft | 1 | |
| Storage Legs | 1 | |
| Solid Tine 12×250 | 30 | 2381837 |
| Description | Quantity | Article number |
|---|---|---|
| Windrow Kit for 2519 | 1 | 211.251.908 |
| Turf Hold Down Kit for 12mm tines – 2519 | 1 | 211.251.902 |
| Turf Hold Down Kit for 18mm tines – 2519 | 1 | 211.251.904 |
| Anti-vibration system 22 serie | 1 | 211.700.500 |
| Solid Tine 5×125 | 30 | 311.105.125 |
| Requires | ||
| Adapter 5mm tines (3/16″) | 30 | 314.205.043 |
| Solid Tine 5×125 | 210 | 311.105.125 |
| Requires | ||
| MTH Block for (21) tines 5mm (3/16″) | 10 | 314.425.170 |
| Solid Tine 8×150 | 30 | 311.108.150 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 30 | 314.208.043 |
| Solid Tine 8×150 | 60 | 311.108.150 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 10 | 9990206 |
| Solid Tine 8×175 | 30 | 9990056 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 30 | 314.208.043 |
| Solid Tine 18×200 | 20 | 311.118.200 |
| Solid Tine 8×175 | 60 | 9990056 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 10 | 9990206 |
| Solid Tine 18×250 | 20 | 2381841 |
| Solid Tine 8×250 | 30 | 9990059 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 30 | 314.208.043 |
| Hollow Tine 10×80 (8 shank) | 30 | 311.210.080 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 30 | 314.208.043 |
| Solid Tine 12×150 | 30 | 311.112.150 |
| Hollow Tine 10×80 (8 shank) | 60 | 311.210.080 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 10 | 9990206 |
| Solid Tine 12×200 | 30 | 311.112.200 |
| Hollow Tine 10×125 (8 shank) | 30 | 311.210.127 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 30 | 314.208.043 |
| Hollow Tine 10×125 (8 shank) | 60 | 311.210.127 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 10 | 9990206 |
| Hollow Tine 16×150 (12 shank) | 30 | 311.216.150 |
| Hollow Tine 16×175 (12 shank) | 30 | 9990022 |
| Hollow Tine 19×150 (12 shank) | 30 | 311.219.150 |
| Hollow Tine 19×200(18 shank) | 20 | 311.219.200 |
| Hollow Tine 19×200 (12 shank) | 30 | 311.219.201 |
| Hollow Tine 19×225 (18 shank) | 20 | 311.219.225 |
| Hollow Tine 19×225 (12 shank) | 30 | 311.219.226 |
| Hollow Tine 19×250 (12 shank) | 30 | 9990040 |
| Hollow Tine 19×250 (18 shank) | 20 | 9990023 |
| Hollow Tine 25×200 (18 shank) | 20 | 311.225.200 |
| Hollow Tine 25×225 (18 shank) | 20 | 311.225.225 |
| Hollow Tine 25×250 (18 shank) | 20 | 9990024 |
| Cross Tine 12×90 (12 shank) | 30 | 311.812.090 |
| Cross Tine 19×120 (12 shank) | 30 | 9990021 |
| Chisel Tine 4.8x19x120 (12 shank) | 30 | 311.619.120 |
| Cross Tine 12×90 (8 shank) | 60 | 9990020 |
| Requires | ||
| MTH Block for (6) tines 8mm (5/16″) | 10 | 9990206 |
| Chisel Tine 4.8x19x175 (12 shank) | 30 | 311.619.175 |
| Cross Tine 12×90 (8 shank) | 30 | 9990020 |
| Requires | ||
| Adapter 8mm tines (5/16″) | 30 | 314.208.043 |
